二段式床腳板抬高功能,可抬高腳部至15度。
2-step Foot Position Lever enables foot section up to 15°.

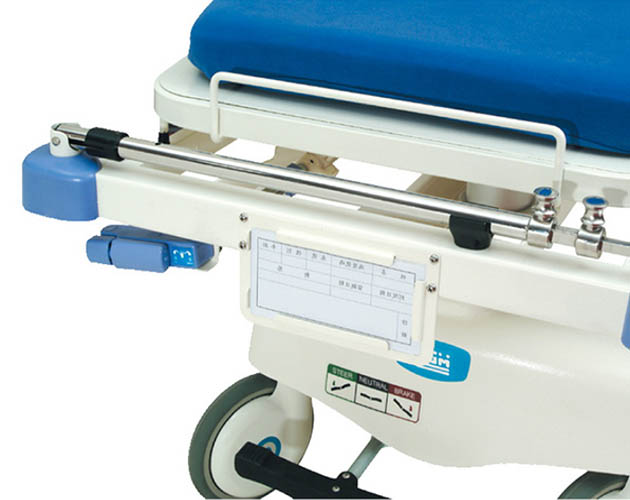

床尾端裝設金屬製病患資料卡座一個,供插置病患資料卡。
Located at the foot-end of the bed. Easy to place and replace patient’s name cards.
手搖螺桿位於床尾處,旋轉搖把操作腿部床板升降,升降角度0-40度。
Manual crank is located at the foot-end and enables the knee section shifting from 0° to 40°.

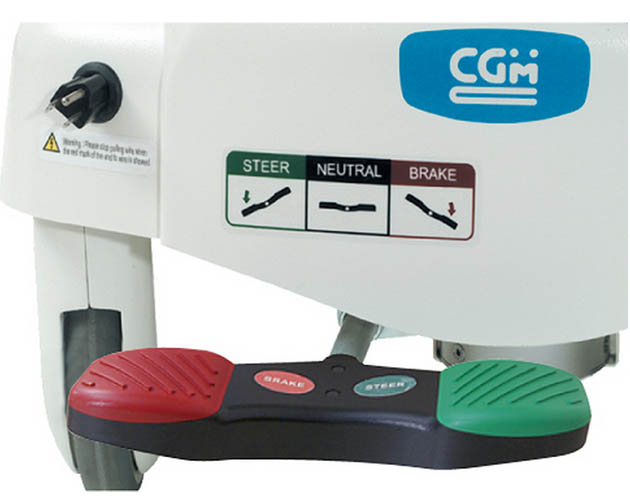

床頭尾端設有中控輪控制踏板,可操作推床行進、煞車及定向直行。
Enable stretcher to move, brake, and steer.

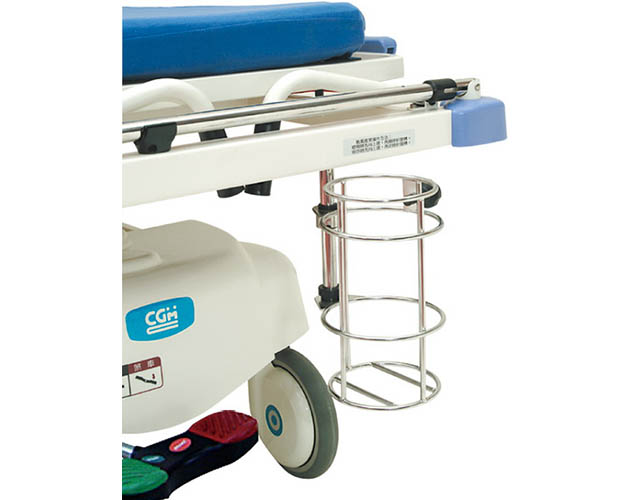

床頭端裝設有0.5 m3氧氣鋼瓶掛架,不用時可旋入於床頭下緣,不妨礙醫護作業的進行。
0.5 m3 Oxygen Tank Holder, located at the head section, can rotate in/out, according to medical requirement.

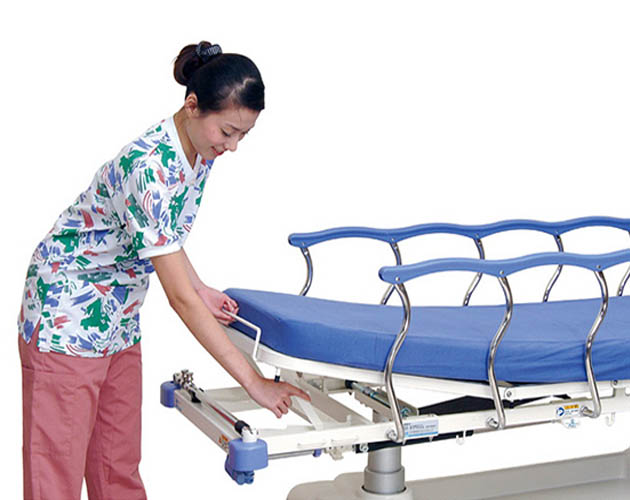

雙氣壓棒控制把手位於床頭處,上拉即可操作床背板升降,升降角度0-90度。
By dual gas-spring set below the Backrest platform, the Backrest movement is able to position from 0° to 90° easily.

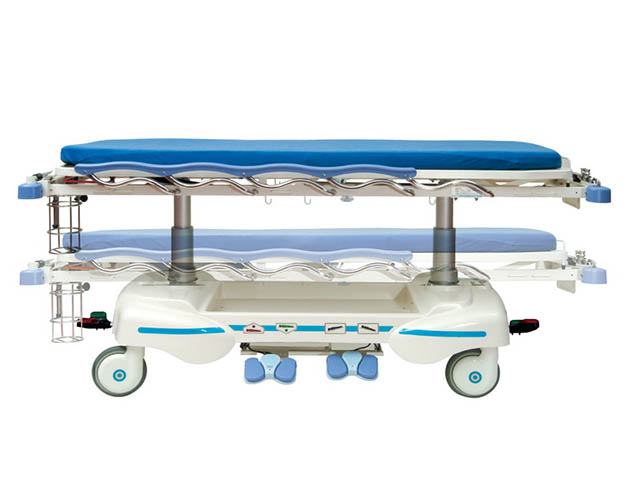

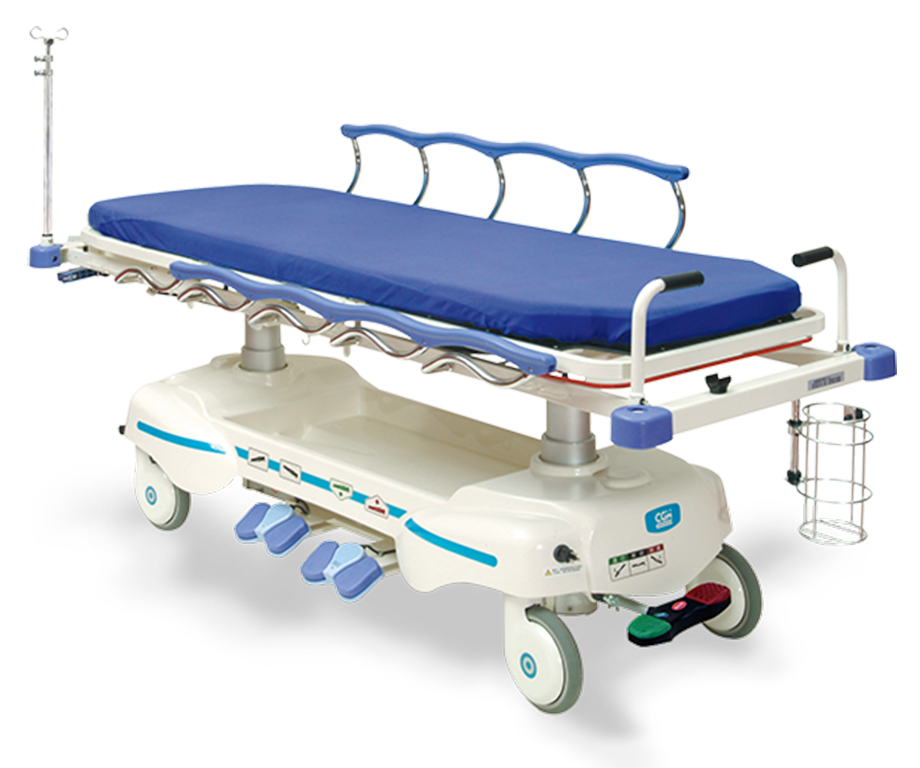

輕踩升降踏板,床面及平穩電動升降,升降高度55-90 cm,雙手可同時進行醫護處置,方便急救作業的進行。 電動升降功能提升作業效率及醫護品質。
Actuator with sophisticated mechanism provides a steady, durable, safe and comfortable elevation function. The height of beds can travel from 55 cm to 90 cm by stepping on the hi-low pedal located on both sides of stretcher.
輕踩升降踏板,床面及平穩電動升降,升降高度55-90 cm,雙手可同時進行醫護處置,方便急救作業的進行。 電動升降功能提升作業效率及醫護品質。

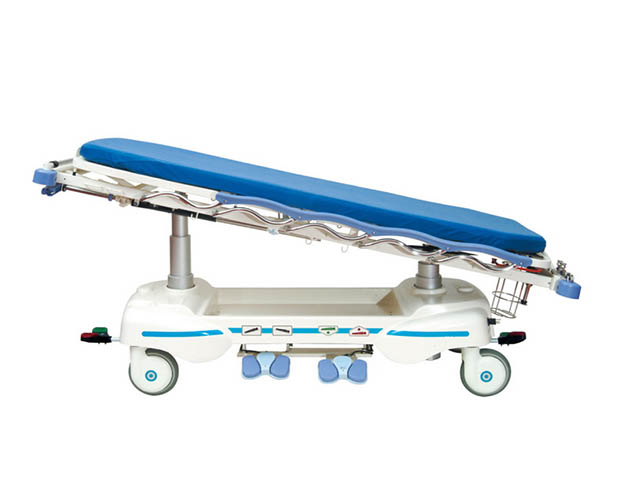

The Trend/Reverse Trend function can travel from -18° to 18° with stability and safety at any height of the stretcher.
運用背部、腿部升降及床面傾斜功能,可形成座椅姿勢。多變的床體姿勢,可改善留觀病患久臥的不適感,提高舒適度。
Able to compose Chair position. Various position choices offered to improve patient comfort.
二段式床腳板抬高功能,可抬高腳部至15度。
2-step Foot Lever enables foot section up to 15°.
床尾端裝設金屬製病患資料卡座一個,供插置病患資料卡。
Located at the foot-end of the bed. Easy to place and replace patient’s name cards.

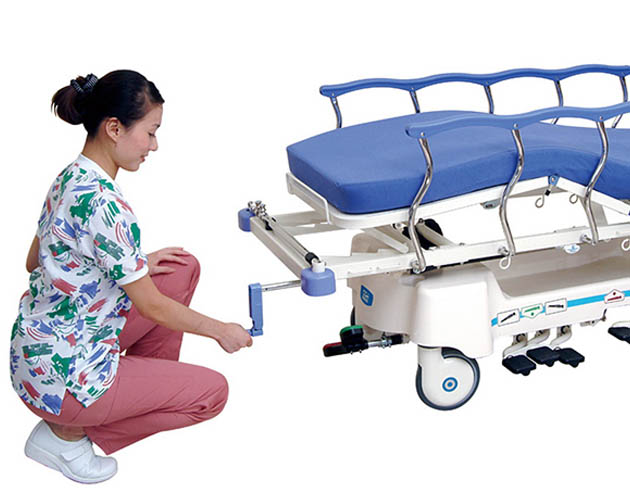

手搖螺桿位於床尾處,旋轉搖把操作腿部床板升降,升降角度0-40度。
Manual crank is located at the foot-end and enables the knee section shifting from 0° to 40°.

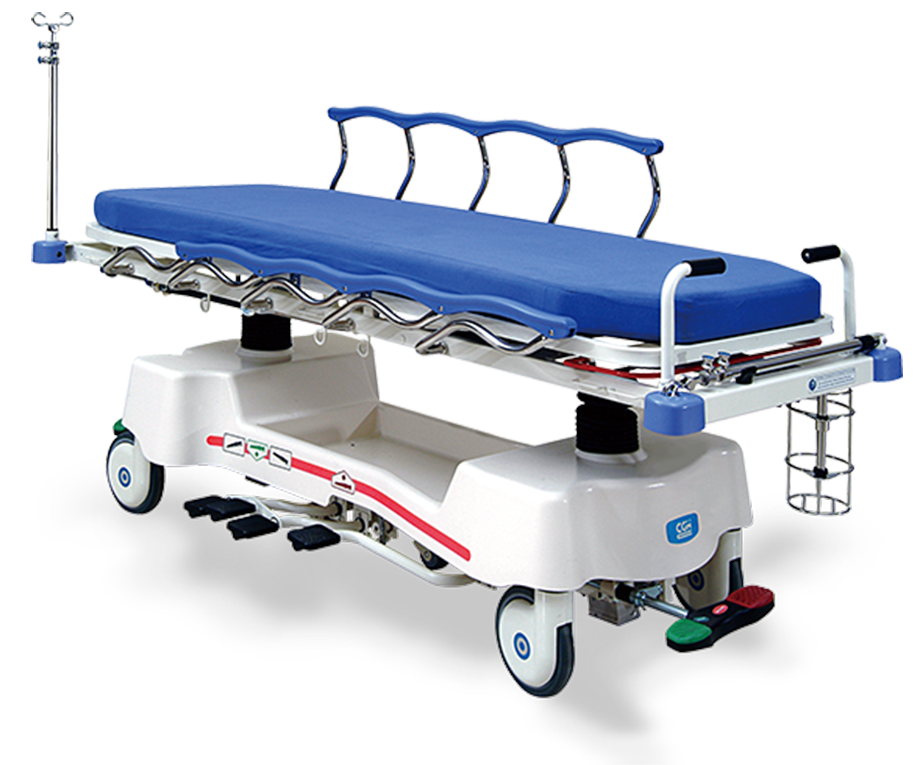

床體兩側裝設腳踏油壓踏板控制床面即傾斜升降
The foot pedal controls the height and tilt positions of stretchers by hydraulic mechanism.

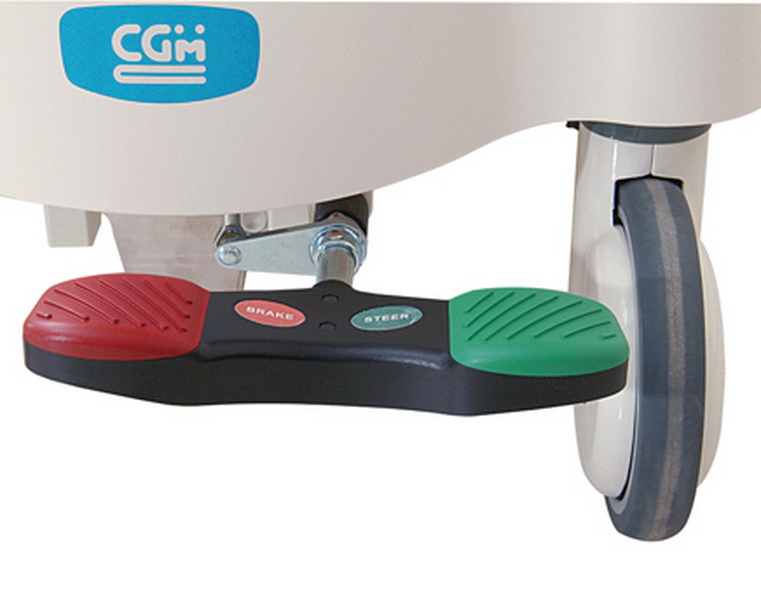

床頭尾端設有中控輪控制踏板,可操作推床行進、煞車及定向直行。
Enable stretcher to move, brake, and steer.

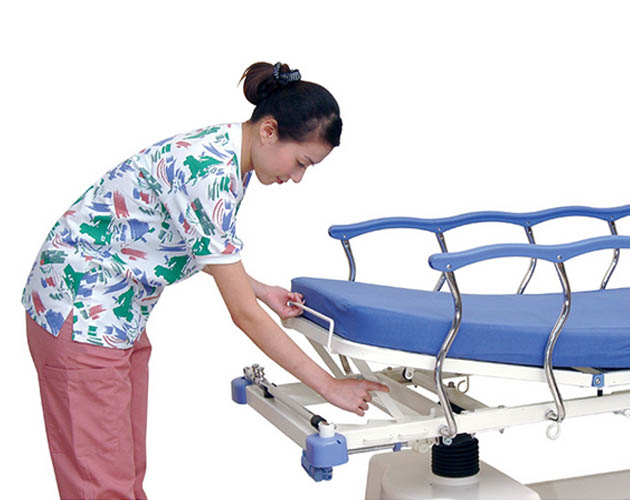

雙氣壓棒控制把手位於床頭處,上拉即可操作床背板升降,升降角度0-90度。
By dual gas-spring set below the Backrest platform, the Backrest movement is able to position from 0° to 90° easily.

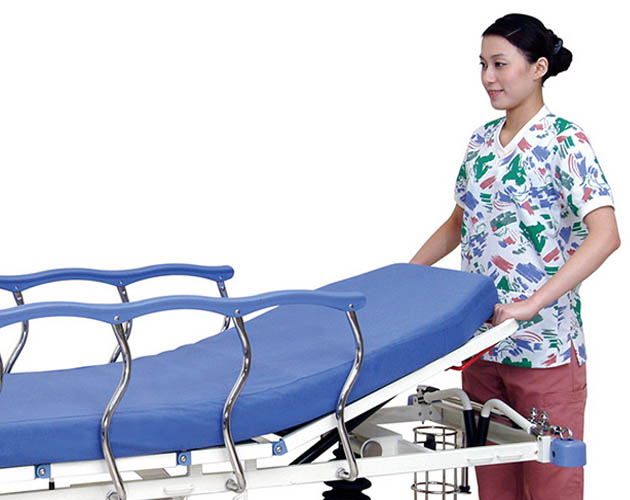

床頭裝設推動把手一組,供病患推送用,不用時可旋下置於床頭處。
Driving Handle can be located at either head or foot-end or both ends for smoothing the way of movement conveniently and can be stored while not in demand.

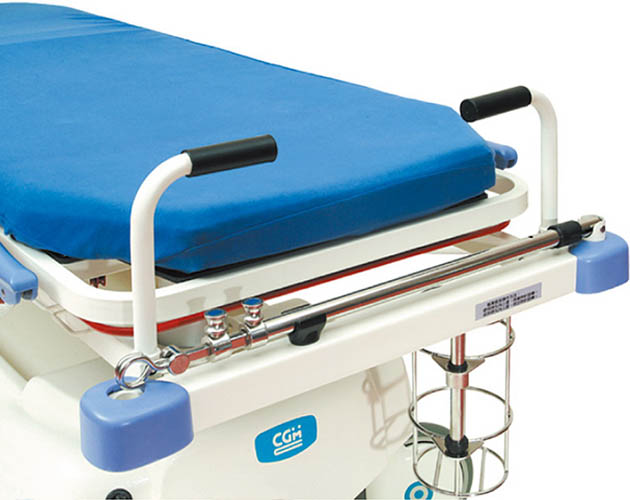

床頭端裝設有0.5 m3氧氣鋼瓶掛架,不用時可旋入於床頭下緣,不妨礙醫護作業的進行。
0.5 m3 Oxygen Tank Holder, located at the head section, can rotate in / out, according to medical requirement.

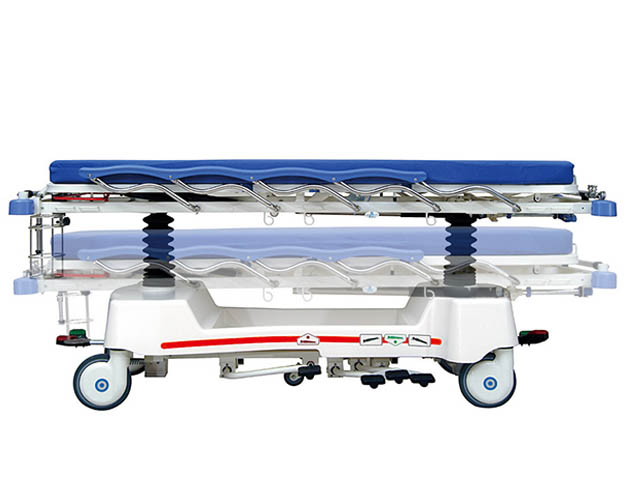

輕踩油壓升降踏板,床面即平穩升降,升降高度56-89 cm,可配合急救作業的進行。 平穩油壓升降功能,可提升醫護作業效率及品質。
Hydraulic system with sophisticated mechanism provides a steady, durable, safe and comfortable elevation function.The height of beds can travel from 56 cm to 89 cm by stepping on the hi-low pedal located on both sides of stretcher.
